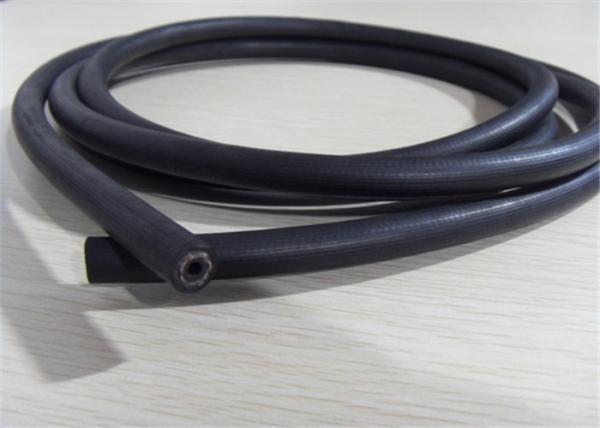

1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System

Name: 18quot 32mm x 105mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System
Brand: PASSION
Price: 0.79 USD

China 1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System factory

Brand Name : PASSION

Model Number : SAE J1401

Certification : CE, ISO 9001:2008

Place of Origin : Zhejiang, CHINA

MOQ : 2000 meters

Price : 0.79 SD per meter

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 50,000 meters per week

Delivery Time : 30 days after your payment

Packaging Details : Well packed by transparent OPP film or as your request.

Application : Act as pressure transmission for auto hydraulic pressure brake system.

Inner Tube : NBR/EPDM

Reinforcement : PET and PVA

Outer Cover : CR/EPDM

Color : Black

Temperature : -40℃~+100℃

Standard : SAE J1401, GB16897-1997, MS263-49

Contact Now

1/8" 3.2mmx10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System

* Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
* Free sample for you.
* OEM accepted. We can print words and your logo on the hose as your request.
* Packed by poly stripes or as your request.
* Test the products before shipped out. We have complete line of test machines.
* We can also get you hose assembly.

Standard	SAE J1401 GB16897-1997 MS263-49
Inner Tube	NBR/EPDM
Outer Tube	PET and PVA
Temperature Range	-40ºC~+100ºC
Application	Act as pressure transmission for auto hydraulic pressure brake system.

Features: The hoses are braided with high strength, manifold, polyester yards and have very good performances as the followings: good flexibility bursting resistance, high tensile strength, low swell increment of the internal volume, ozone resistance, low-temperature, bending resistance and good compatibility with stable, safe and reliable braking effects.

Specification

Item Code	Inner Diameter		Outer Diameter	Wall	Diff max.	Expansion ml/m max		Burst Press Min.
	inch	mm	mm	mm	mm	6.9mpa	10.3mpa	mpa
J1401-1	1/8	3.2±0.2	10.5±0.3	3.65	≤0.25	<1.08	<1.38	>49.03
J1401-2	3/16	4.8±0.2	13±0.3	4.35	≤0.30	<1.81	<2.36	>34.5
J1401-3	1/4	6.3±0.2	15±0.3	3.75	≤0.30	<2.69	<3.84	>34.5

1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System

Packaging
Well packed by transparent OPP film or as your requirement.

1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System

Shipping
We ship the goods by express, by air, by sea or according to your requirement.

CE and ISO Certification

1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System
Our Services

1.We can provide matching hose connection.
2.We can provide free hose sample.
3.Other kinds of rubber hoses are also served.
4.Other sizes can be customized.
5.We can print words on the hose according to your requirement.
6.We can package the goods according to your requirement.
