Customized ID 1/4" 6mm Smooth Surface Working Pressure 150 Psi 10 Bar Rubber Air Hose
Detail Information of Product
Material: NR or SBR
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Inner Tube: NR or SBR synthetic rubber
Reinforcement: High Tensile polyester fiber braided
Temperature Range: -30ºC~+80ºC
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
OEM Accepted: Yes
Fitting: We can provide as your requirement.
Specification of Product
Besides 1/4", other sizes are also available.
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| | inch | mm | mm | bar | bar | m | cbm/roll | kg/m |
| PRA-05 | 3/16" | 5 | 11.5 | 20 | 60 | 100 | 0.02 | 0.15 |
| PRA-06-1 | 1/4" | 6 | 12 | 10 | 30 | 100 | 0.023 | 0.16 |
| PRA-06 | 1/4" | 6 | 13 | 20 | 60 | 100 | 0.025 | 0.17 |
| PRA-08 | 5/16" | 8 | 15 | 20 | 60 | 100 | 0.03 | 0.22 |
| PRA-10 | 3/8" | 10 | 17 | 20 | 60 | 100 | 0.04 | 0.26 |
| PRA-13 | 1/2" | 13 | 21 | 20 | 60 | 100 | 0.07 | 0.4 |
| PRA-16 | 5/8" | 16 | 24 | 20 | 60 | 50 | 0.06 | 0.45 |
| PRA-19 | 3/4" | 19 | 29 | 20 | 60 | 50 | 0.07 | 0.7 |
| PRA-25 | 1" (1b) | 25 | 36 | 12 | 36 | 50 | 0.09 | 0.85 |
| PRA-25-2 | 1" (2b) | 25 | 37 | 20 | 60 | 50 | 0.1 | 0.95 |
| PRA-32 | 1-1/4" | 32 | 44 | 10 | 30 | 50 | 0.16 | 1.4 |
| PRA-38 | 1-1/2" | 38 | 51 | 10 | 30 | 50 | 0.20 | 1.7 |
| PRA-51 | 2" | 51 | 65 | 10 | 30 | 20 | 0.20 | 2 |

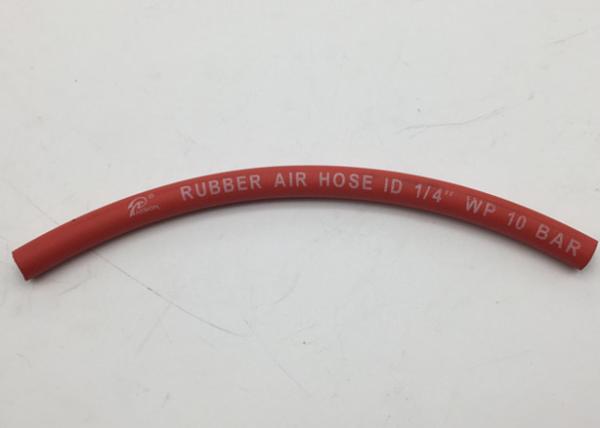

Picture of Product
Picture of Packing
By transparent OPP films or poly stripes.
CE and ISO cetifications
Competitive Advantage
1. We can provide matching hose connection.
2. We can provide free hose sample.
3. Hydraulic rubber hose is also served.
4. Other sizes can be customized.
5. We can print words on the hose according to your requirement.
6. We can package the goods according to your requirement.
7. Over 10 years of rubber hose producing experience.
8. We test every batch of goods before send out.
Welcome to visit our booth at Hannover Messe 2017!
Stand A17-9, Hall 21
Hannover Exhibition Gounds
Apirl 24th to 28th
PASSION FOR HOSE, PASSION FOR YOU!!
